TR SERIES

Perfect Solution for Plastic Waste Recycling & Compounding.

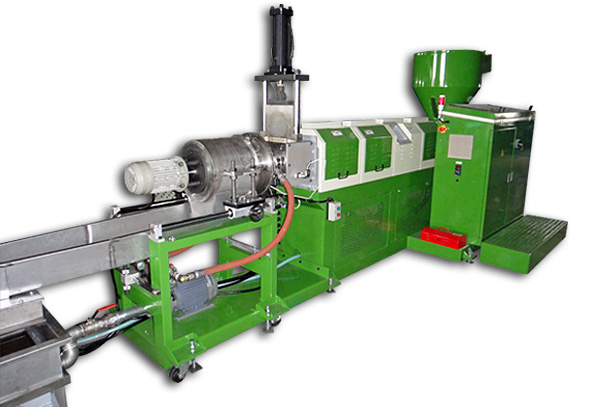

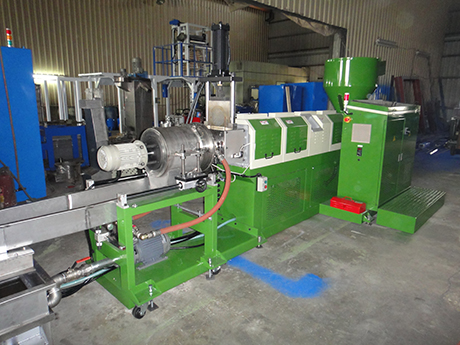

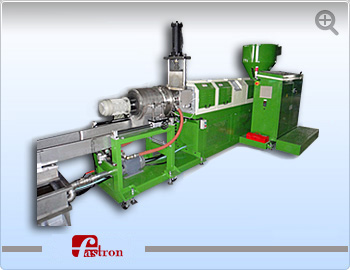

TR Series machine combines extrusion and die face pelletizing together, provides a perfect solution for plastic waste recycling and compounding, it is not only very easy to operate but also reliable to produce good quality pellets at high output capacity.

BACK
RS-C
  • BENEFITS
  • SPECIFICATIONS
  • PHOTOS
    Extruder:
  • Screw is designed and made based on years of practical experiences for maximum flexibility in processing various plastics while maintaining optimum melt quality at the highest output capacity.

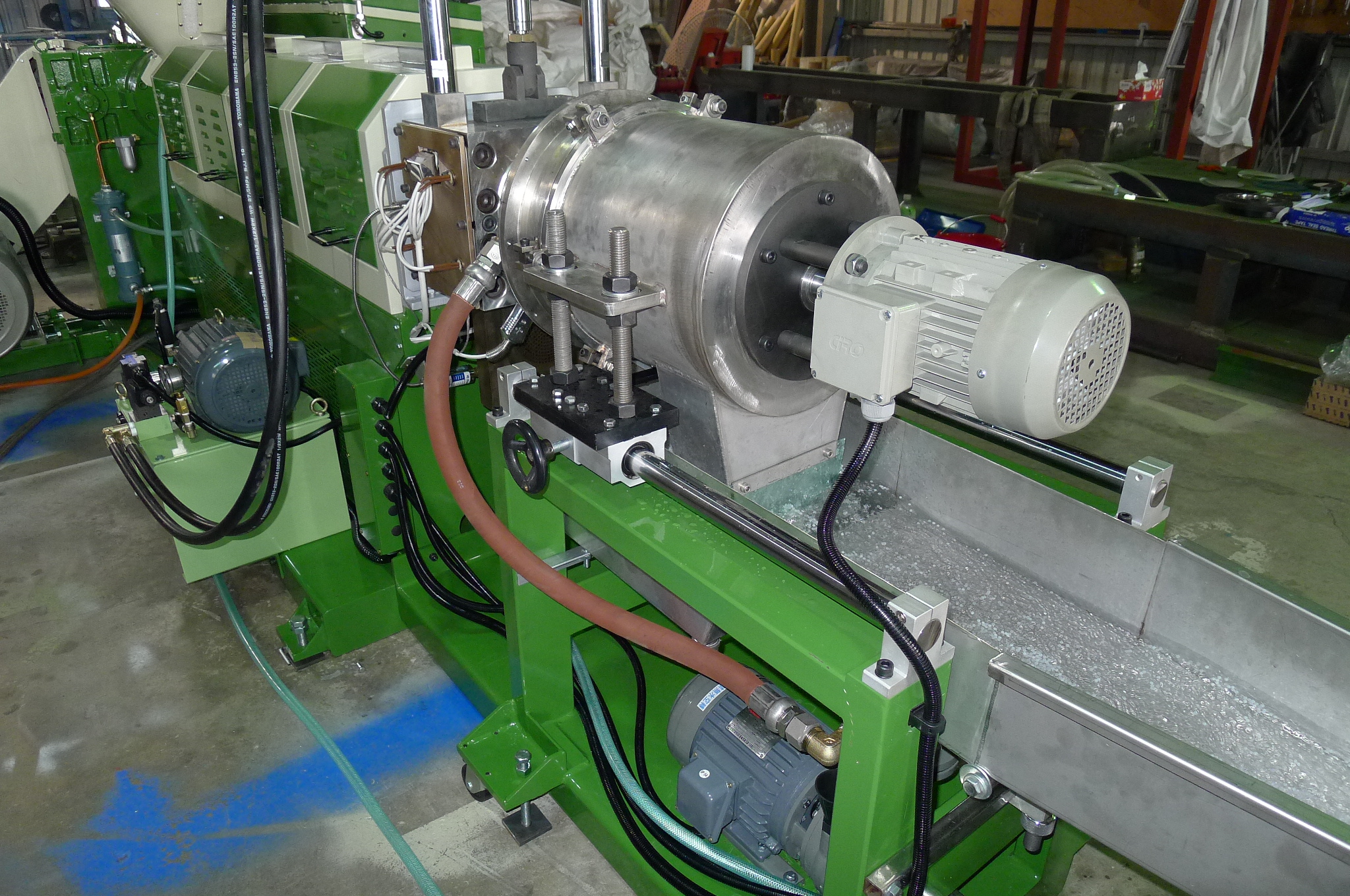

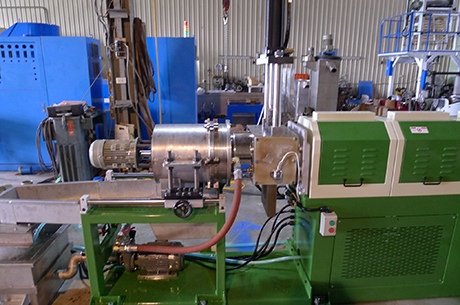

    Special and unique design of die face cutting:
  • The pellets produced can be as the same standard and appearance as virgin granules.
  • Larger die face allows more die holes and bigger hole gap to avoid pellets clumping together. More holes leads to less resistance of material flow, so it reduces the tendency for material coming out from the vent.
  • Unique die design allows longer overlap gap between each hole, with bigger size cutting knife to ensure the longer lifetime.
  • Longer lifetime of cutting motor with running in slower & logical rpm due to larger die face and more holes.
    Centrifuge dewatering unit (option):
  • Allowing the pellets to dry completely. It is also compact, and space saving in comparison to the vibrating tank.
    Dual piston screen changer (option):
  • Has a 3 - 5 times larger filter area than slide type filters to save the labor time in changing filters, and the additional cost of the filter screens.
  • Continuous Non-stop operation, no need to shut down or slow down the speed of extruder
Model TR-75V TR-120V TR-150V
Material LDPE、LLDPE、HDPE、PP、ABS、PS
Capacity PE(kg) 140-170 400-600 600-800
Extruder
Screw Φ 75 120 150
L/D 30/1 30/1 30/1
Screw material SACM645 nitrided, and hard chrome plated
Motor + inverter 75HP 150HP 250HP
Barrel thermo Zone 4 6 6
Barrel cooling 1/4 HP*4 1/2 HP*6 1/2 HP*6
Barrel material SACM645 nitrided, honed, hardness treatment
Screen changer ( Hydraulic slide type ) with pressure gauge
Filter diameter (MM) 150 250 300
Driving Motor 3HP 5HP 7.5HP
Die face cutting device  -  with 3pcs big knife
Cutter motor(inverter) 2HP 3HP 3HP
Cooling water pump 2HP 5HP 5HP

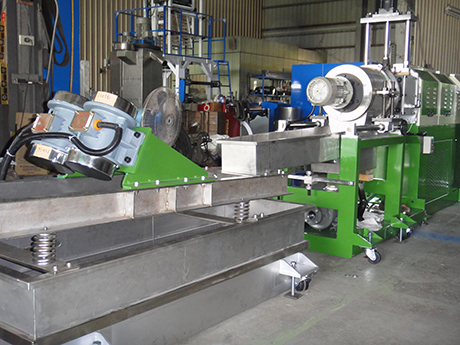

Vibration screen & water trough
Vibration motor 1/4 HP x2 1/4 HP x4 1/4 HP x4
Pellet Blower motor 3HP 5HP 7.5HP
Options :
Water cooling tower Second stages extruder for heavy ink waste
Vacuum pump Quantitative feeder for masterbatch or solid chips
Crusher + conveying blower Double vented type barrel
Dual piston type screen changer ( larger filter area) Centrifuge dewatering drying device
Vibrating classifier
