HMB & MB SERIES

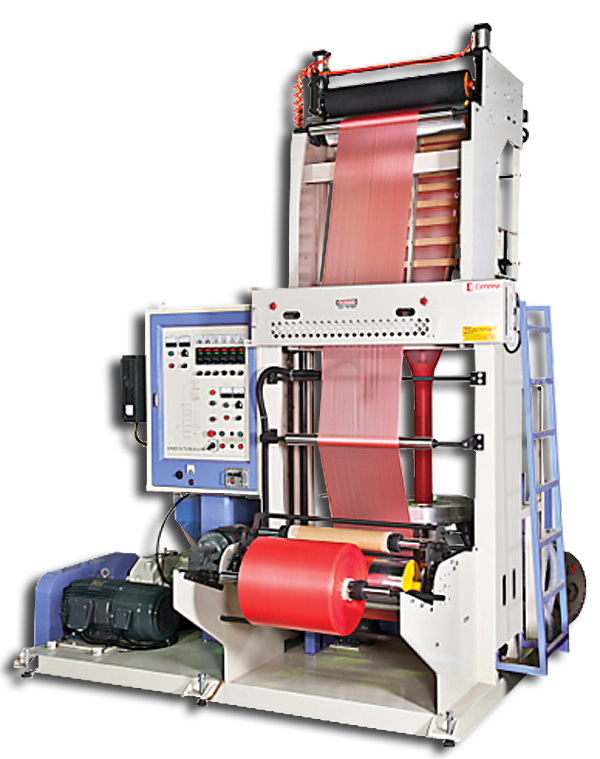

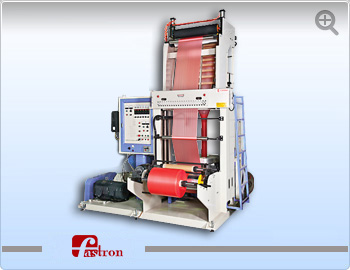

Compact Mini Type Film Blown Line
HMB Series machine is compact, economical and user-friendly, it is a mini machine but has all the heavy-duty equipment needed for a quick start-up and reliable production of narrow HDPE/LDPE film tubing.

  BACK
HMB & MB SERIES
  • BENEFITS
  • SPECIFICATIONS
  • PHOTOS
  • Ideal for producing HDPE/LDPE film for making T-shirt bags & plain bags.
  • Longer screw & barrel at 30/1 ( screw has two mixing section design ) for better mixing, specially for recycled material.
  • Bi-metallic treatment on screw flight to ensure longer lifetime.
  • Three temperature control zones for barrel cooling, and more accurate temperature control for the bubble stability.
  • Two temperature control zones for die, making it much easier to control the bubble stability for different materials, especially for recycled material.
  • Gear box is a compact, durable, longer lifetime design, and the thrust bearing in the gear box is SKF29416, able to support upto 25HP motor.
  • Cooler is a larger multi-piping type, easy for repair and maintenance.
  • Six zones of temperature control, for more accurate temperature control and better performance.

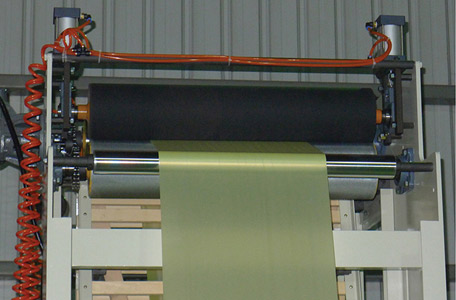

  • Independent embossing roller in addition to take up nip rollers. To ensure better results and longer lifetime ofrollers. All pneumatically control. ( option )
  • Winder can be upgraded to deluxe type, with winding dia. upto 1000mm. ( option )
Model HMB40/500 HMB45/650 HMB45/800
Production LDPE、LLDPE、HDPE Tubular film
Width of Film (MM) 400 550 700
Thickness of Film 0.008~0.06mm
Extrusion Output( kgs/hr ) LDPE 25~35 LDPE 35~45 LDPE 45~55
HDPE 20~35 HDPE 35~45 HDPE 40~50
Extruder
Type of Eetruder LOW BASE TYPE
Main Motor 15HP + inverter 20HP + inverter 20HP + inverter
Gear Box Material FC 25
Type With Forced Lubrication System & Cooler
Gear Material SCM-21 Carbon Treat & Gear Face Ground
Screw
Screw Diameter Ø 47
L/D Ratio 30 / 1 ( with two mixing section & bi-metallic treatment on screw flight )
Material SACM-645 Nitrided, Polished and Hard Chrome Plated Hardness
Barrel SACM-645 Nitrided, Honed and Hard Chrome Plated Hardness
Auto Thermal controller 3 zones
Barrel Cooling With Air-Cooling Blower
Die Head

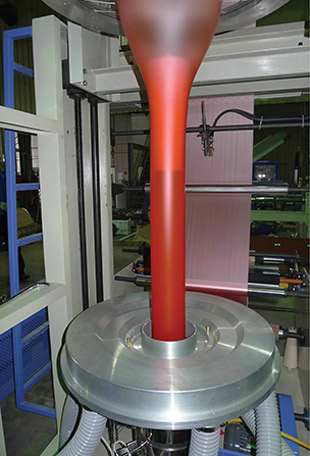

Die Type Spiral Type
Auto Thermal controller 2 zones
Air Ring 1 SET
Bubble Cooling 3HP
Adaptor
Screen Filter Ø50 × 1 Ø50 × 1 Ø50 × 1
Auto Thermal controller 1

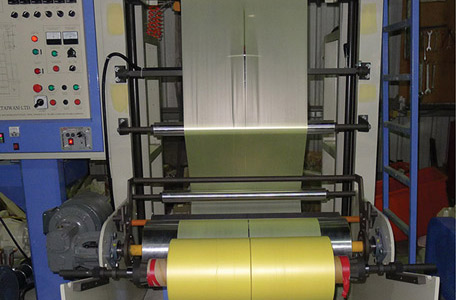

Take-up unit
Drive Motor 1HP AC + inverter Control
Pinch Roller Ø160 × 500 (MM)L Ø160 x 650 (MM)L Ø160 × 800 (MM)L
Take Up Tower Tower Fix Type Tower Height Adjustable Tower Height Adjustable
Winder Manual Surface Contact Winder
Winding Motor 0.3 KG - M 0.3 KG - M 0.3 KG - M
Winding Roller 500 (MM)L 650 (MM)L 800 (MM)L

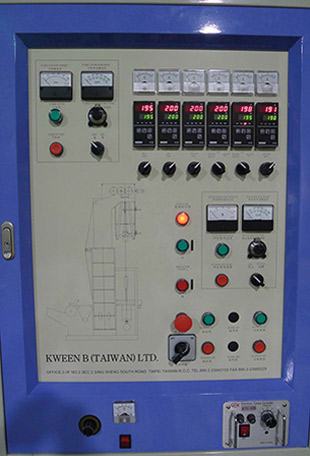

CONTROL PANEL 1 SET
Dimension of Machine (L x M x H) 2610 × 1700 × 3600 2760 x 1700 x 3600 2900 × 1700 × 3600
Options :
Auto Loader Double Station Winder
Embossing Roller Winder upgraded to 1000mm winding dia.
Corona Treater Bubble controller
Hot Knife Air Compressor
  Level type manual screen changer

SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN

Model MB40/500 MB45/650 MB45/800
Production LDPE、LLDPE、HDPE Tubular film
Width of Film (MM) 400 550 700
Thickness of Film 0.008~0.06mm
Extrusion Output ( kgs/hr ) LDPE 25~35 LDPE 30~40 LDPE 40~50
HDPE 20~35 HDPE 30~35 HDPE 35~45
Extruder
Type of Eetruder LOW BASE TYPE
Main Motor 15HP + inverter 15HP + inverter 20HP + inverter
Gear Box Material FC 25
Type With Forced Lubrication System & Cooler
Gear Material SCM-21 Carbon Treat & Gear Face Ground
Screw
Screw Diameter Ø 47
L/D Ratio 26 / 1 ( with two mixing section & bi-metallic treatment on screw flight )
Material SACM-645 Nitrided, Polished and Hard Chrome Plated Hardness
Barrel SACM-645 Nitrided, Honed and Hard Chrome Plated Hardness
Auto Thermal controller 2 zones
Barrel Cooling With Air-Cooling Blower
Die Head
Die Type Spiral Type
Auto Thermal controller 1 zones
Air Ring 1 SET
Bubble Cooling 3HP
Adaptor
Screen Filter Ø50 × 1 Ø50 × 1 Ø50 × 1
Auto Thermal controller 1
Take-up unit
Drive Motor 1HP AC + inverter Control
Pinch Roller Ø160 × 500 (MM)L Ø160 x 650 (MM)L Ø160 × 800 (MM)L
Take Up Tower Tower Fix Type Tower Height Adjustable Tower Height Adjustable
Winder Manual Surface Contact Winder
Winding Motor 0.3 KG - M 0.3 KG - M 0.3 KG - M
Winding Roller 500 (MM)L 650 (MM)L 800 (MM)L
CONTROL PANEL 1 SET
Dimension of Machine (L x M x H) 2610 × 1700 × 3600 2760 x 1700 x 3600 2900 × 1700 × 3600
Options :
Auto Loader Double Station Winder
Embossing Roller Winder upgraded to 1000mm winding dia.
Corona Treater Bubble controller
Hot Knife Air Compressor
Bi-metallic treatment on screw flight Level type manual screen changer

SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
