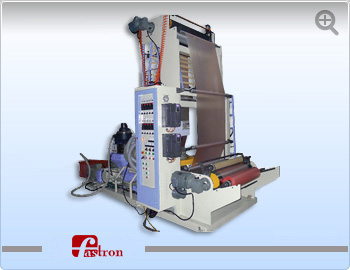

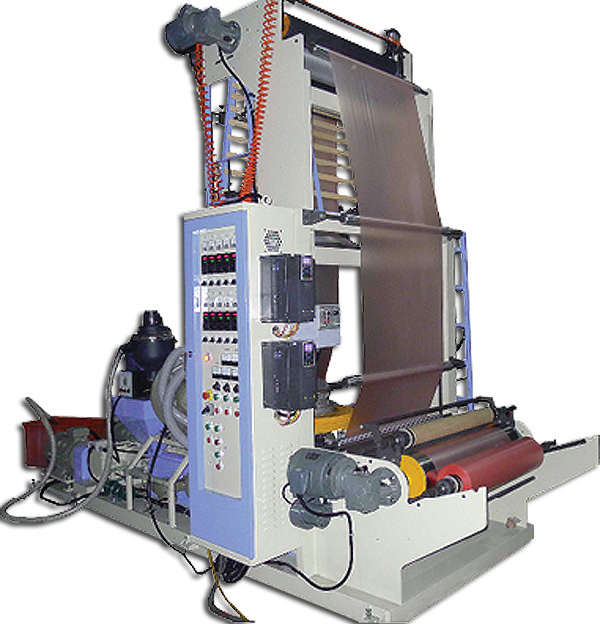

HMB-DL SERIES

Co-extrusion Mini Type Film Blown Line
HMB-DL Series machine is a super-compact co-extrusion blown film line, it has two extruders under the mini-type machine frame, capable of making two layer of AB or 3 layer of ABA structure PE co-extrusion blown film at low investment cost.

BENEFITS
SPECIFICATIONS

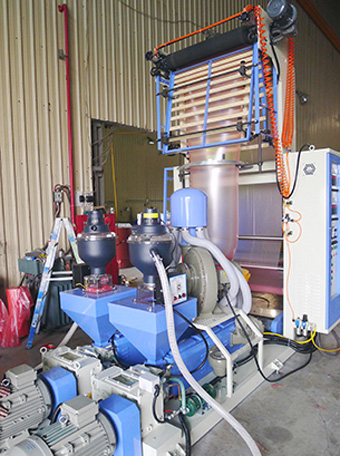

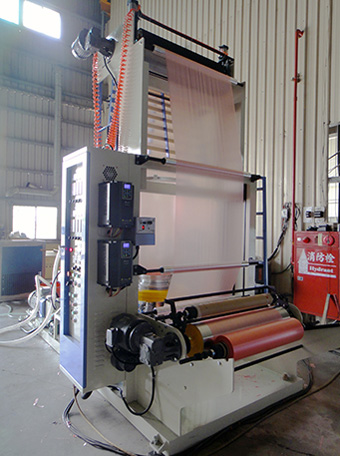

PHOTOS

Ideal for garbage bag or mixed with high percentage recycled material.
Film in two layers structure, film is not so easy to be broken in producing when using a lot of recycled material, so it reduces the time for the operator of pulling up the bubble due to breaking.
Longer screw & barrel at 30/1, with two mixing sections for better mixing, specially for recycled material longer lifetime.
Two temperature control zones for die, much easier to control the bubble stability for different materials, especially for recycled material.
Two-rollers Independent type of embossing roller apart from take up nip rollers instead of economic one-roller type. To have better embossing result and longer lifetime of rollers. All pneumatic control. (option)
Thrust bearing in the gear box is SKF29416.

Model	HMB45DL/1000
Production	LDPE、LLDPE、HDPE Tubular film
Width of Film (MM)	850
Thickness of Film	0.008~0.06mm
Extrusion Output( kgs/hr )	LDPE 75~100
Extrusion Output( kgs/hr )	HDPE 70~90

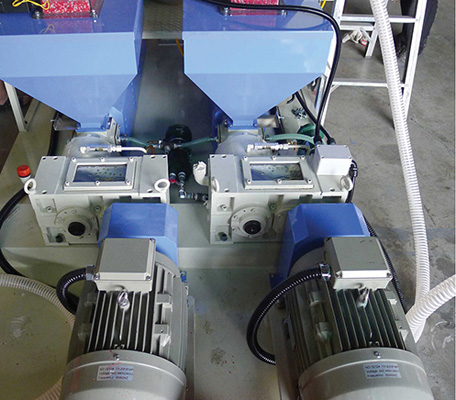

Extruder x 2 sets
Type of Eetruder	LOW BASE TYPE
Main Motor	20HP + inverter
Gear Box	Material FC 25
Type	With Forced Lubrication System & Cooler
Gear Material	SCM-21 Carbon Treat & Gear Face Ground
Screw
Screw Diameter	Ø 47
L/D Ratio	30 / 1 ( with two mixing section & bi-metallic treatment on screw flight )
Material	SACM-645 Nitrided, Polished and Hard Chrome Plated Hardness
Barrel	SACM-645 Nitrided, Honed and Hard Chrome Plated Hardness
Auto Thermal controller	2 zones
Barrel Cooling	With Air-Cooling Blower
Die Head
Die Type	Spiral Type
Auto Thermal controller	2 zones

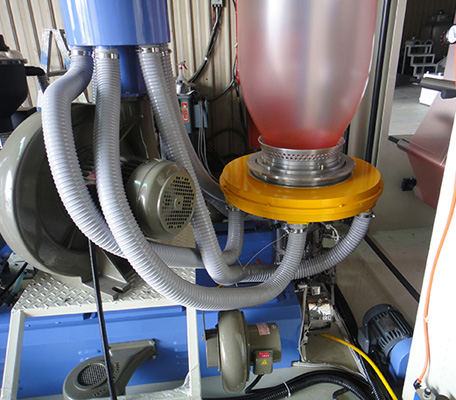

Air Ring	1 SET
Bubble Cooling	5HP
Adaptor
Screen Filter	Ø50 × 1
Auto Thermal controller	1
Take-up unit
Drive Motor	1HP AC + inverter Control
Pinch Roller	Ø160 × 1000 (MM)L
Take Up Tower	Tower Height Adjustable
Winder	Manual Surface Contact Winder
Winding Motor	0.3 KG - M
Winding Roller	1000 (MM)L
CONTROL PANEL	1 set
Option
Auto Loader	Winder upgraded to 1000mm winding dia.
Embossing Roller	Bubble controller
Corona Treater	Air Compressor
Hot Knife	Level type manual screen changer

SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
