| Model | HDS40/500 | HDS45/800 | HDS55/1200 |

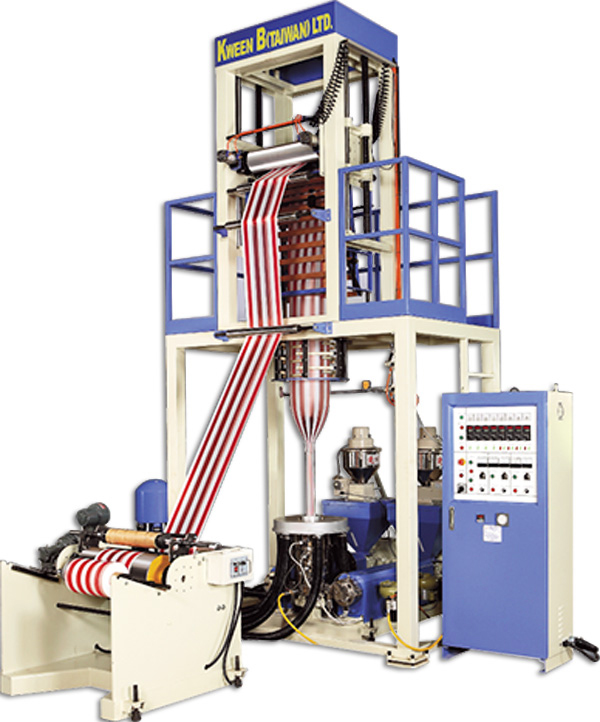

| Production | Two color stripe LDPE/HDPE Tubular film | ||
| Width of Film (MM) | 400 | 700 | 1100 |
| Thickness of Film | 0.008~0.06mm | ||
| Extrusion Output( kgs/hr ) | LDPE 25~40 | LDPE 50~80 | LDPE 80~110 |
| HDPE 20~35 | HDPE 40~60 | HDPE 80~100 | |
| Extruder x 2 sets | |||
| Type of Eetruder | LOW BASE TYPE | ||
| Main Motor | 10HP + inverter | 20HP + inverter | 30HP + inverter |
| Gear Box | Material FC 25 | ||
| Type | With Forced Lubrication System & Cooler | ||
| Gear Material | SCM-21 Carbon Treat & Gear Face Ground | ||
| Screw | |||
| Screw Diameter | 40 | 47 | 55 |
| L/D Ratio | 26 / 1 | ||
| Material | SACM-645 Nitrided, Polished and Hard Chrome Plated Hardness | ||
| Barrel | SACM-645 Nitrided, Honed and Hard Chrome Plated Hardness | ||
| Auto Thermal controller | 2 zones | ||
| Barrel Cooling | With Air-Cooling Blower | ||

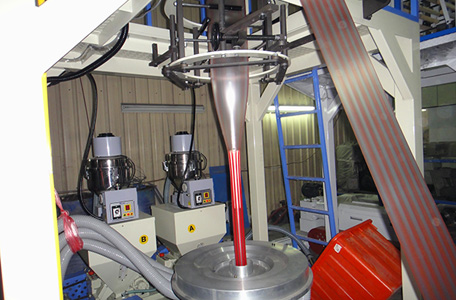

| Die Head : two color stripe co-extrusion type | |||
| Die Type | Spiral Type | ||
| Auto Thermal controller | 2 | ||
| Air Ring | 1 SET | ||
| Bubble Cooling | 3HP | 3HP | 5HP |
| Adaptor | |||
| Screen Filter | Ø50 × 1 | Ø50 × 1 | Ø50 × 1 |
| Auto Thermal controller | 1 | ||
| Take-up unit | |||
| Drive Motor | 1HP AC + inverter Control | ||
| Pinch Roller | Ø160 × 500 (MM)L | Ø160 x 800 (MM)L | Ø160 × 1200 (MM)L |
| Take Up Tower | Tower Height Adjustable | Tower Height Adjustable | Tower Height Adjustable |
| Winder | Manual Surface Contact Winder | ||
| Winding Motor | 0.2 KG - M | 0.3 KG - M | 0.4KG - M |
| Winding Roller | 500 (MM)L | 800 (MM)L | 1200 (MM)L |
| CONTROL PANEL | 1 SET | ||
| Options : | |||
| Rotary Die | Double Station Winder | ||
| Auto Loader | Auto Winder | ||
| Embossing Roller | Film Width controller | ||
| Corona Treater | Air Compressor | ||
| Hot Knife | etc… | ||
| SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN | |||
