HAS & HA SERIES

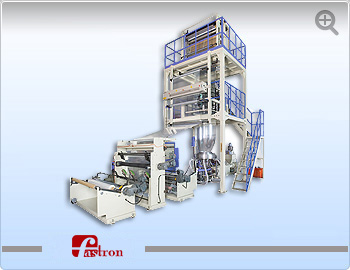

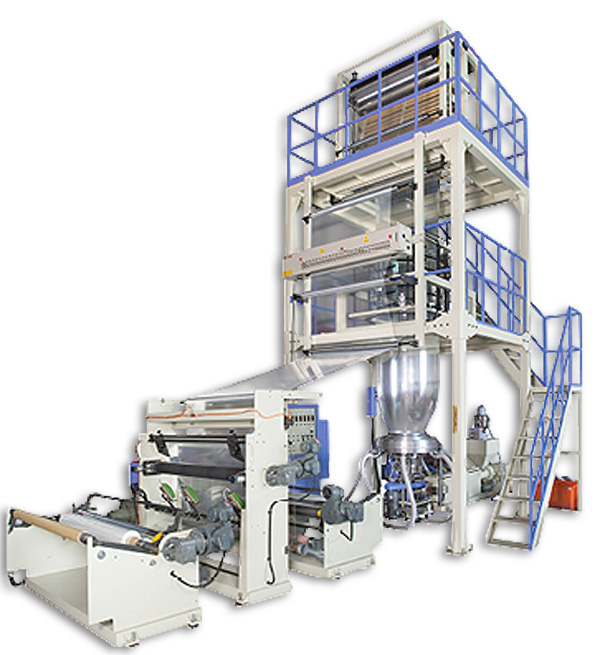

HD/LD/LLDPE High Speed Type Film Blown Line
HAS Series machine is our deluxe high speed type PE film blown line, from high performance Extruder, state-of-the-art Die & Air Ring, robust constructed Take-Up Tower & Winder, are all designed for high speed production, day-in and day-out.

  BACK
HAS & HA SERIES
  • BENEFITS
  • SPECIFICATIONS
  • PHOTOS
  • For producing HDPE, LDPE, LLDPE and MLLDPE tubular film/sheetings.
  • Higher output at lower melt temperature.
  • Precisely machined spiral die.
  • High efficiency air ring.
  • Vibration-free production with robust tower supported by heavy-duty structural steel.
  • Barrier screw & grooved barrel design for better mixing and higher output.
  • A grooved-feed barrel increases the extruder's feed rate by compressing the feedstock in at very high pressure, this allows polymer to be processed with a shorter residence time and maintains excellent melt quality.
  • The winder is a surface contact type designed for winding up large, perfect film rolls.
  • Extruder sizes from 45mm-120mm, film layflat width from 300mm-2500mm, production output from 50kgs to 250kgs/hr.

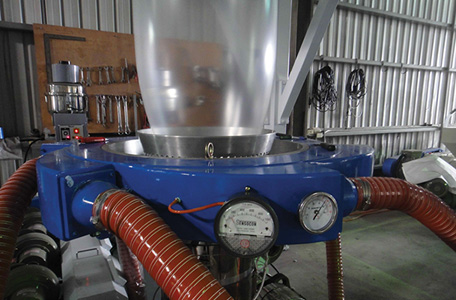

  • The State-of-the-Art Dual Lip "TS" type Air Ring Provides better cooling efficiency, better gauge cont uality and faster line speed. ( option )

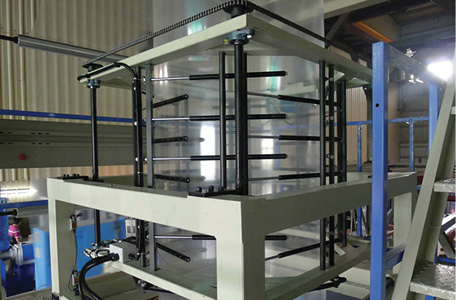

  • Bakelite type bubble stabilizer, electrical controlled height & diameter.
Model HAS-45 HAS-55 HAS-65 HAS-75 HAS-90
Production LDPE、LLDPE、HDPE Tubular film
Width of Film (MM) 700 1100 1400 1700 2000
Thickness of Film 0.008~0.1mm for HDPE, 0.01~0.2mm for LDPE
Extrusion Output( kgs/hr ) LDPE 60 – 70 80 – 90 120 – 140 150 – 170 230 – 250
HDPE 50 – 60 70 – 80 100 – 120 120 – 150 170 – 200
Main Motor( inverter control) 30 HP 40 HP 60 HP 75 HP 100 HP
Screw Diameter Ø 47 Ø55 Ø65 Ø75 Ø90
L/D Ratio 30 / 1
Auto Thermal controller 3 Points 3 Points 3 Points 4 Points 5 Points
Heating Capacity 5HP + inverter 5HP + inverter 7.5HP + inverter 10 HP + inverter 10 HP + inverter
Take-up unit: pneumatic clamping for pinch roller, wooden collapsing frame, gusseting board
Bubble Stabilizer: Bakelite Type, height and diameter adjustable by motor
Drive Motor (inverter control) 1HP AC 1 HP AC 2 HP AC 2 HP AC 2 HP AC
Pinch Roller (MM)L Ø162 × 800 Ø162 x 1200 Ø162 × 1500 Ø162 × 1800 Ø162 x 2100
Second Take-up Torque Motor 0.2 KGM 0.2 KGM 0.2 KGM 0.3 KGM 0.3 KGM
Winder Deluxe type Manual Surface Contact Winder
Winding Motor 0.3 KG - M 0.3 KG - M 0.5 KG - M 0.5 KG - M 0.75 KG - M
Winding Roller (MM)L Ø240 × 800 Ø240 x 1200 Ø240 × 1500 Ø240 × 2000 Ø240 x 2100
CONTROL PANEL Isolated Type x 1 SET Digital Displaying Instruments
Options :
Rotary Die Double Station Winder
Auto Loader Auto Winder
Embossing Roller Film Width controller
Corona Treater Air Compressor
Hot Knife Oscillating tower

SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN

Model HA-45 HA-55 HA-65 HA-75 HA-90
Production LDPE、LLDPE、HDPE Tubular film
Width of Film (MM) 700 1100 1400 1700 2000
Thickness of Film 0.008~0.1mm for HDPE, 0.01~0.2mm for LDPE
Extrusion Output( kgs/hr ) LDPE 50 – 60 75 – 85 110 – 130 140 – 160 180 – 200
HDPE 40 – 50 65 – 75 80 – 100 120 – 140 130 – 150
Main Motor( inverter control) 30 HP 40 HP 50 HP 60 HP 75 HP
Screw Diameter Ø 47 Ø55 Ø65 Ø75 Ø90
L/D Ratio 28 / 1
Auto Thermal controller 2 Points 2 Points 3 Points 4 Points 5 Points
Heating Capacity 6 (KW) 8 (KW) 21 (KW) 29 (KW) 34 (KW)
Bubble Cooling 5HP + inverter 5 HP + inverter 7.5HP + inverter 10 HP + inverter 10 HP + inverter
Take-up unit: pneumatic clamping for pinch roller, wooden collapsing frame, gusseting board
Bubble Stabilizer: Bubble Stabilizer: Manual type bubble cage
Drive Motor (inverter control) 1HP AC 1 HP AC 2 HP AC 2 HP AC 2 HP AC
Pinch Roller (MM)L Ø162 × 800 Ø162 x 1200 Ø162 × 1500 Ø162 × 1800 Ø162 x 2100
Second Take-up Torque Motor 0.2 KGM 0.2 KGM 0.2 KGM 0.3 KGM 0.3 KGM
Winder Economic type Manual Surface Contact Winder
Winding Motor 0.3 KG - M 0.3 KG - M 0.5 KG - M 0.5 KG - M 0.75 KG - M
Winding Roller (MM)L Ø240 × 800 Ø240 x 1200 Ø240 × 1500 Ø240 × 2000 Ø240 x 2100
CONTROL PANEL Isolated Type x 1 SET Digital Displaying Instruments
Options :
Rotary Die Double Station Winder
Auto Loader Auto Winder
Embossing Roller Film Width controller
Corona Treater Air Compressor
Hot Knife Oscillating tower

SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
