Two Layers Co-extrusion FILM BLOWN LINE

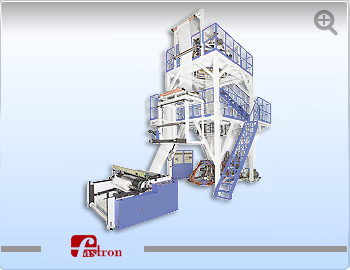

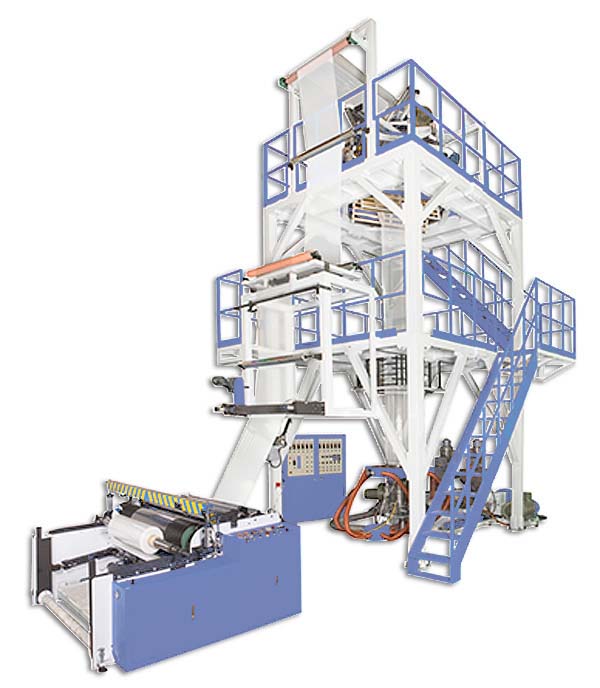

DL Series is a two-extruder co-ex machine to produce 2 layer AB or 3 layer ABA film, co-extrusion allows processors to combine different materials to meet a wide variety of demanding packaging applications.

BACK
DL SERIES
  • BENEFITS
  • SPECIFICATIONS
  • PHOTOS

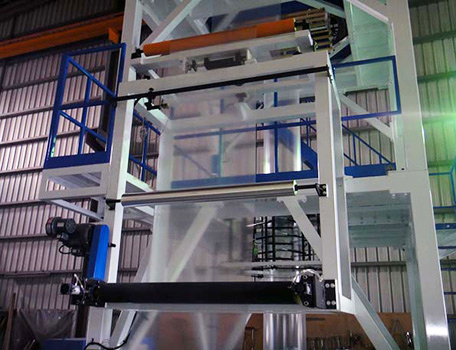

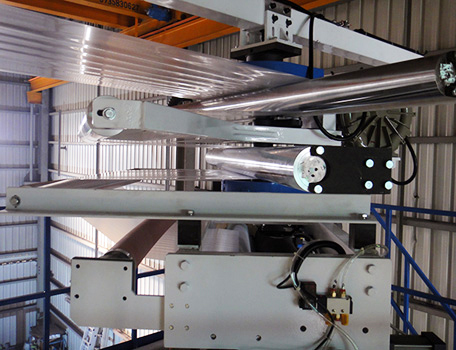

  • The Oscillating Haul-Off Unit provides a better gauge randomization by spreading gauge irregularities formed both in the melt between the die face and frost line and in the film up through the collapsing frame.

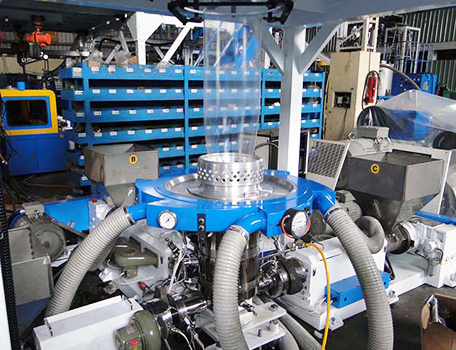

  • The DL series has 2 extruders to process multilayer film.

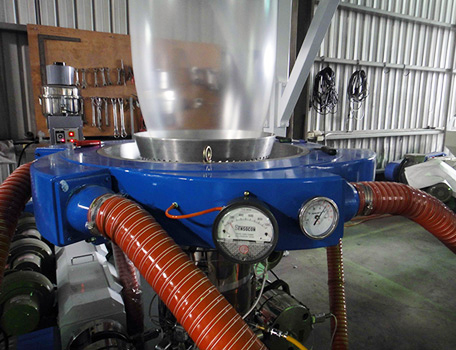

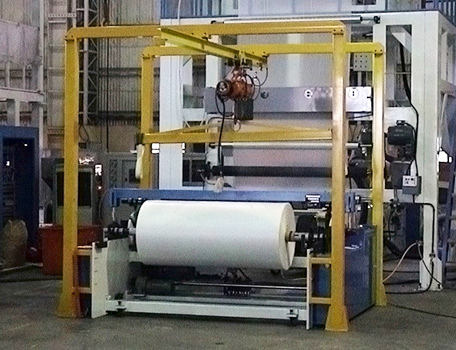

  • The automatic surface type winder produces high quality film roll with even edges and consistent hardness.
  • The Edge Guide is used to keep the edge of the film perfectly in line.
Model DL45 /800 DL55/1200 DL65/1500 DL80/2000
Production LDPE、LLDPE、HDPE Tubular film
Width of Film (MM) 650 1050 1350 1800
Thickness of Film 0.02~0.2MM
Extrusion Output( kgs/hr ) LDPE 60~80 LDPE 90~120 LDPE 120~150 LDPE 150~200
HDPE 50~70 HDPE 70~90 HDPE 100~120 HDPE 120~150
Extruder ( x 2 sets )
Type of Eetruder LOW BASE TYPE
Main Motor 20HP + inverter 20HP + inverter 50HP + inverter 60HP + inverter
Gear Box Material FC 25
Type Forced Lubrication System + cooler
Gear Material SCM-21 Carbon Treat & Gear Face Ground
Screw
Screw Diameter Ø 45 Ø55 Ø65 Ø80
L/D Ratio 28 / 1
Material SACM-645 Nitrided and Hard Chrome Plated Hardness
Barrel
Material SACM-645 Nitrided Honed and Polished Hardness
Auto Thermal controller 2 Points 3 Points 3 Points 4 Points
Heating Capacity 6 (KW) 8 (KW) 21 (KW) 29 (KW)
Barrel Cooling With Air-Cooling Blower
Die Head
Die Type Inflation Spiral type
Auto Thermal controller 2 2 2 2
Heating Capacity 3.8 (KW) 4.0 (KW) 8.2 (KW) 10.6 (KW)
Air Ring 1 SET 1 SET 1 SET 1 SET
Bubble Cooling 5HP + inverter 5 HP + inverter 7 1/2 HP + inverter 10 HP + inverter
Take-up unit: pneumatic clamping for pinch roller, wooden collapsing frame with gusseting board
Drive Motor 1HP AC + inverter 1HP AC + inverter 1HP AC + inverter 2 HP AC + inverter
Pinch Roller Ø160 × 800 (MM)L Ø160 x 1200 (MM)L Ø160 × 1500 (MM)L Ø160 × 2000 (MM)L
Second Take-up Torque Motor 0.2 KGM 0.2 KGM 0.2 KGM 0.3 KGM
Winder Manual Surface Contact Winder
Winding Motor 0.3 KG - M 0.3 KG - M 0.4 KG - M 0.5 KG - M
Winding Roller 800 (MM)L 1200 (MM)L 1500 (MM)L 2000 (MM)L
CONTROL PANEL Isolated Type x 1 SET Digital Displaying Instruments
Options :
Oscillating Tower with EPC EPC ( edge position control )
Rotary Die Double Station Winder
Auto Loader Auto Winder
Embossing Roller Film Width Controller
Corona Treater Air Compressor

SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
