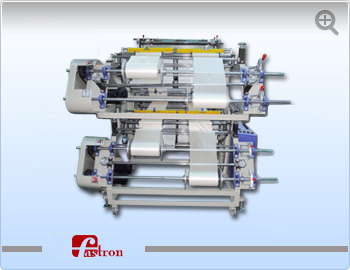

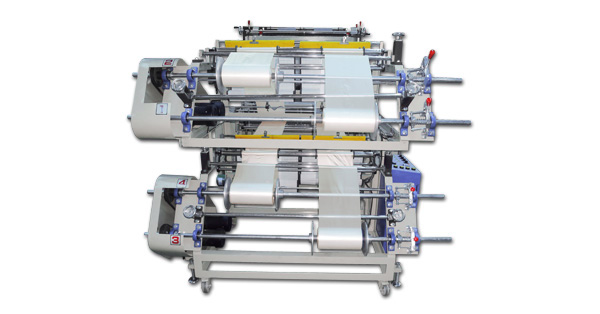

DOUBLE DECK PERFORATED BAG ON ROLL MAKING MACHINE

FDPR-650S, FDPR-750S, FDPR-1000S

BACK
FDPR
  • FEATURES
  • SPECIFICATIONS
  • Synchronized sealing/perforating movement, keep accuracy forever.
  • Independent un-winding designed with two sets of film feeding motors & sensors.
  • Japanese made clutch/brake & German made photocell for printed bags precisely registration.
  • Inverter is equipped for speed changing system ensure the most stable machine operation.
  • Optional attachment of “Front sensor” is available for stopping machine when perforated bags break during rewinding.
  • Optional attachment for C-folding is available for TRASH bag on roll making.
MODEL FDPR-650S FDPR-750S FDPR-1000S
Max. Length of the Bag 340 mm 340 mm 340 mm
Max. Width of the Bag 300 mm x 4
600 mm x 2
360 mm x 4
750 mm x 2
500 mm x 4
1000 mm x 2
Thickness of the Film 0.008 ~ 0.1 mm
Production Speed 40 ~ 120 bags / min
Power Requirement 7500 w 7500 w 10000 w
Machine Dimension
(L x W x H / mm )
2800 x 1650 x 1800 2801 x 1750 x 1800 2800 x 1850 x 1800
