DMS SERIES

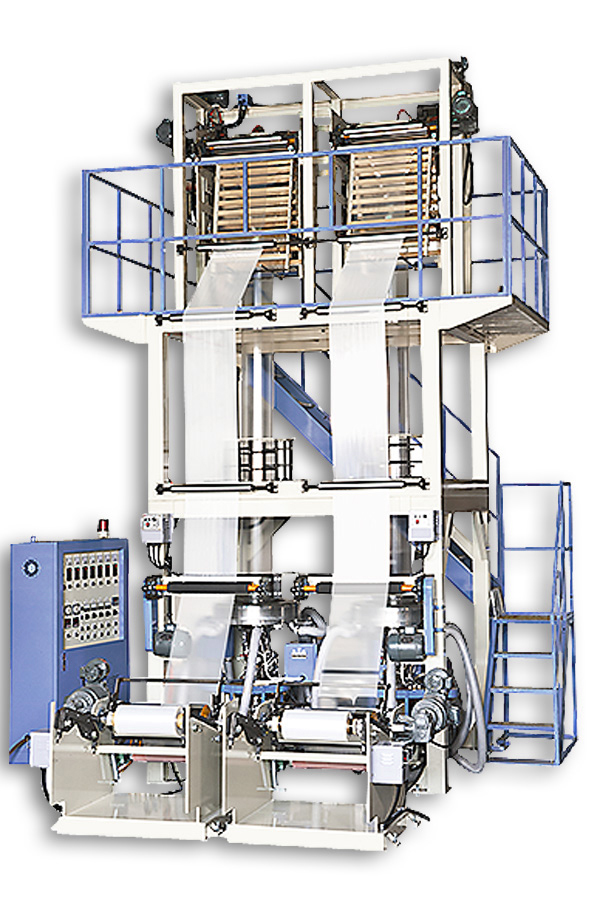

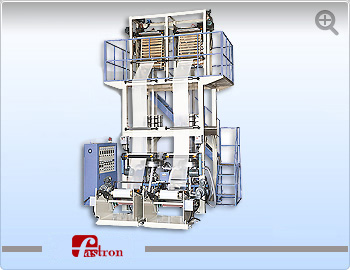

Double Head Type Film Blown Line
DMS Series machine is a single-extruder with two die heads that can produce two rolls of PE film at the same time, it is very cost-effective for making narrow film tubing.
BACK
DMS SERIES
  • BENEFITS
  • SPECIFICATIONS
  • Space saving and power saving due to compact design.
  • Two tubular film to be made at the same time from one single extruder.
  • Height of take-up tower is adjustable to suit different cooling needs.
  • Economical and easy to operate for sustained production.
Model DMS 55/500 DMS 55/800
Production HD/LDPE Tubular film
Width of Film (MM) 450 700
Thickness of Film 0.008~0.1mm
Extrusion Output( kgs/hr ) HDPE 50~55
LDPE 55~65
Extruder
Type of Eetruder LOW BASE TYPE
Main Motor 30HP + inverter
Gear Box Material FC 25
Type With Forced Lubrication System & Cooler
Gear Material SCM-21 Carbon Treat & Gear Face Ground
Screw
Screw Diameter Ø 55
L/D Ratio 30 / 1
Material SACM-645 Nitrided, Polished and Hard Chrome Plated Hardness
Barrel SACM-645 Nitrided, Honed and Hard Chrome Plated Hardness
Auto Thermal controller 3 zones
Barrel Cooling With Air-Cooling Blower
Die Head x 2 sets
Die Type Spiral Type
Auto Thermal controller 2 zones
Air Ring 1 SET
Bubble Cooling 3HP
Adaptor
Screen Filter Ø50 × 1 Ø50 × 1
Auto Thermal controller 1
Take-up unit x 2 sets
Drive Motor 1HP AC + inverter Control + reducer with coupling
Pinch Roller 162mm dia. X 500mm (L) 162mm dia. X 800mm (L)
Take Up Tower Height adjustable type, with pneumatic nip roller
Winder Manual Surface Contact Winder
Winding Motor 0.3kg/M torque motor + reducer with coupling
Winding Roller 250mm dia. X 500mm (L) 250mm dia. X 800mm (L)
CONTROL PANEL 1 SET
Options :
Auto Loader Double Station Winder
Embossing Roller Winder upgraded to 1000mm winding dia.
Corona Treater Bubble controller
Hot Knife Air Compressor
  Level type manual screen changer

SPECIFICATION FOR REFERENCE ONLY WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
