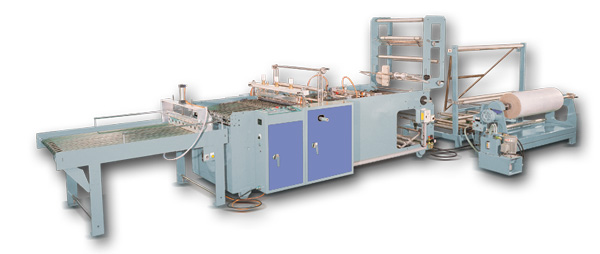

HIGH SPEED MULTI-FUNCTIONAL SIDE SEALING BAG MAKING MACHINE

FSW-800S, FSW-1000S


BACK
FSW-650S/FSW-800S/FSW-1000S
  • FEATURE
  • OPTION
  • SPECIFICATIONS

Specially designed for making various kinds of printed welded bags.

Japanese made servo motor and Germany made photocell are equipped for accurate sealing and registration under high speed.

Japanese made inverter are equipped to stabilize machine speed and avoid mechanical breakdown.

Magnetic brakes device can make film feeding smooth.

Optional attachment is available for making special side welding bags as followings:
  • Hole punching unit: one hole, half-moon shaped, butterfly shaped.
  • Middle sealing device
  • Up & down sealing device
  • Robber sealing device
  • Supersonic roller sealing device
  • Hot melt applicator system
  • Triangle fold unit for making OPP film with EPC(edge position controller)
  • Mould welding system for chicken bag, etc.
  • Adhesive tapping device
  • Auto conveyer for collecting bags

  • Hot roller sealing device for OPP stationery bag.
  • Ultra-Sonic Sealing Device for OPP stationery bag.
  • Hole punching device. (6mm, 8mm, 10mm, etc.)
  • Handle Punching Device. (Kidney shape)
  • Heavy duty unwind stand with E.P.C. & powder brake.
  • Round bottom chicken bag making device.
  • Inverted "T" shape hanger hole punching device. (Butterfly hole punching device)
  • DHL bag making device. (Courier service bag)
  • Auto stacker
  • Corner sealing device. (Slant sealing at bag's bottom for standing pouch)
  • Triangle folding device (For folding single sheet PE film to run in-line with the machine)
MODEL FSW-650S FSW-800S FSW-1000S
Size Width (m / m) 75-800 75-800 75-800
Length(m / m) 75-650 75-800 75-1000
Production Speed (bags / min) 60-200 60-200 60-200
Thickness of Film (mm) 0.01-0.10 0.01-0.10 0.01-0.10
Heaters 2.6 kw 2.6 kw 3 kw
Power Required 4.3 kw 4.7 kw 5.0 kw
Machine Dimensions L(m) 4.2 4.2 4.2
W(m) 1.40 1.50 2.00
H(m) 1.85 1.85 1.85
Machine Weight (kg) 1700 2000 2300
Packing Size (m) 3.0 × 1.5 × 200 3.0 × 1.7 × 200 3.0 × 1.9 × 200
Gross Weight (kg) 2000 2300 2600
Air Compressor
(not included)		 5 HP 5 HP 5 HP
